S-A20 Semi Automatic Seamer machine
S-A20 Semi Automatic Seamer machine
- Product Info
- Product Sample
- Machine Video
- Machine Animation
- Close View / Tooling
- Specification / Features
S-A20 Semi Automatic Seamer is specially designed for round can closing. Operator put end on flanged can and put them on the lifter plate. Then, operator press the foot pedal to make lifter plate lift can up to touch chuck. Can is static while seaming head is turning. Four seaming rollers undertake seaming task. Seamed can is carried away by hands. Seam quality meet international standard. Lifter plate is driven by an air cylinder. Simple structure and multiple safety devices, easy for operation and maintenance.
coming soon
Specifications
Machine Type | S-A20 |
---|---|
Range of Can Height | 32 - 320 mm |
Capacity Per Min. | Up to 20 Cnds/min. |
Horse Power Required | 1HP x 6P |
Compressed Air Required | 4kg/cm2 x 10L/Min. |
Floor Space Overall Height | 660 x 530 x 1830 mm |
Net Weight | 650 kgs |
Features
- Very sturdy manufacturing of machine flames suitable for round containers making.
- Rolls and Chuck are made from alloy steel and harden treatment.
- Perfect products and built for long life.
- With Air Cylinder for clutch actuating, effective but low maintenance.
- Easy adjustment and quick for can size change over.
- Can be used for oil filter seaming.
- Equipped with auxiliary pneumatic cylinder for easy foot step.

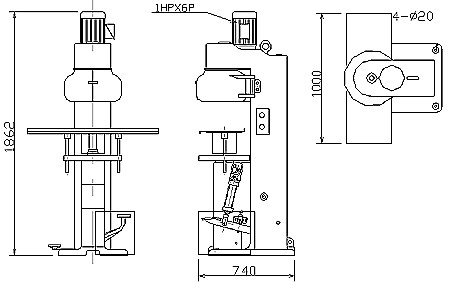

Layout Dimension
