Features

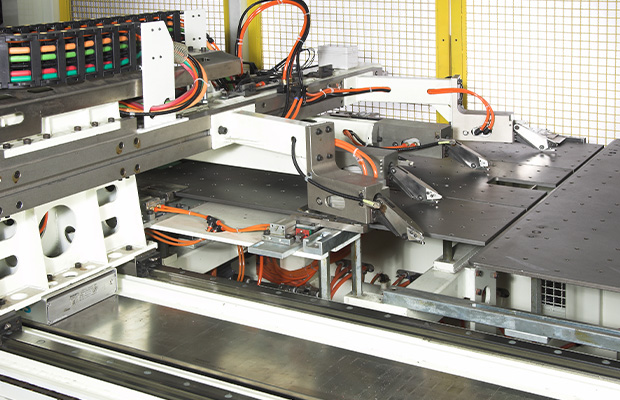

- With reliable precise linear servo motors and human-machine interface (touchable screen).
- Movement orbit generate and download automatically, easy for different end size parameters set up.
- With reliable precise linear servo motors to reduce the inertia at high speed.In addition,automatic detection device for over temperature, speed and over limit position is introduced to guarantee safety. Moreover, a water cooling system is incorporated to control the linear servo motor temperature
- Created movement orbit is confirmed automatically to ensure if it is within the safety range on each axis.

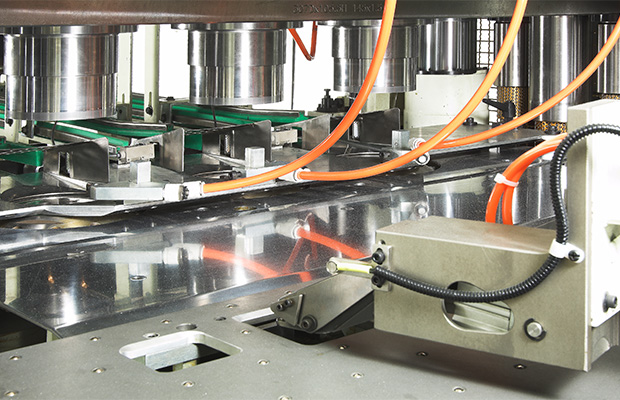

- Equipped with sensors to detect if the clips or claws certainly hold the sheet or can.
- Multiple safety control；for example，machine stop for low air pressure、lack of oil、jam at exit. Moreover, safety range detection on each axis is equipped.
- Equipped with air brake clutch,safe and reliable.

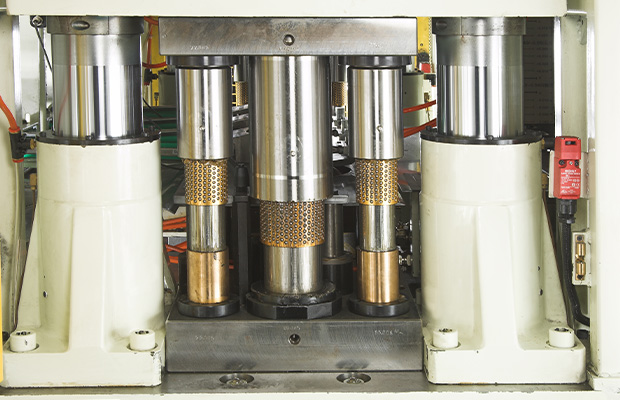

- Tooling with pillar die set can be easily pushed into via rollers buried on bolster(for S-B85SA).
- Can ejection is controlled by electronic cam adjustment to avoid double punch.
- Bushes on crankshaft and ram guiding posts are properly lubricated by recycling oildriven by an automatic oil pump.
- Two sets of air cushion cylinders located at press upper side to balance the weight of rams and toolings.
- Suitable for straight or pre-scrolled tin /aluminum sheet.
- Suitable for redraw or reverse-draw on second drawing operation.
