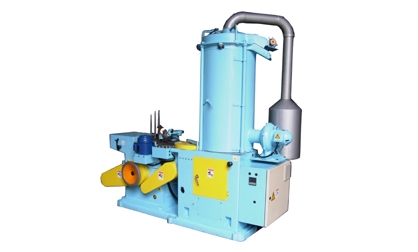

Automatic Lining-Drying Machine

S-B10A Automatic Lining- Drying Machine is specially designed for small round end. Curled end is separated by a pair of separating knives at end magazine ;then feeding bars send it to lining station. End is lifted up by a turning chuck. A mechanical gun (or electronic gun) undertake the lining task to evenly spray compound along the end fringe. Lined ends are transferred by a turret to enter drying oven. Inside the drying oven , heating air is created and recycled by an electric heater and a blower. Ends are carried up through eight transfer screws and are ejected out through a magnetic (or suction type) belt. With recycleable lubricating system and multiple safety devices, easy for maintenance and can size changeover.
