Automatic Double Curling Machine

S-B18CL(LL)

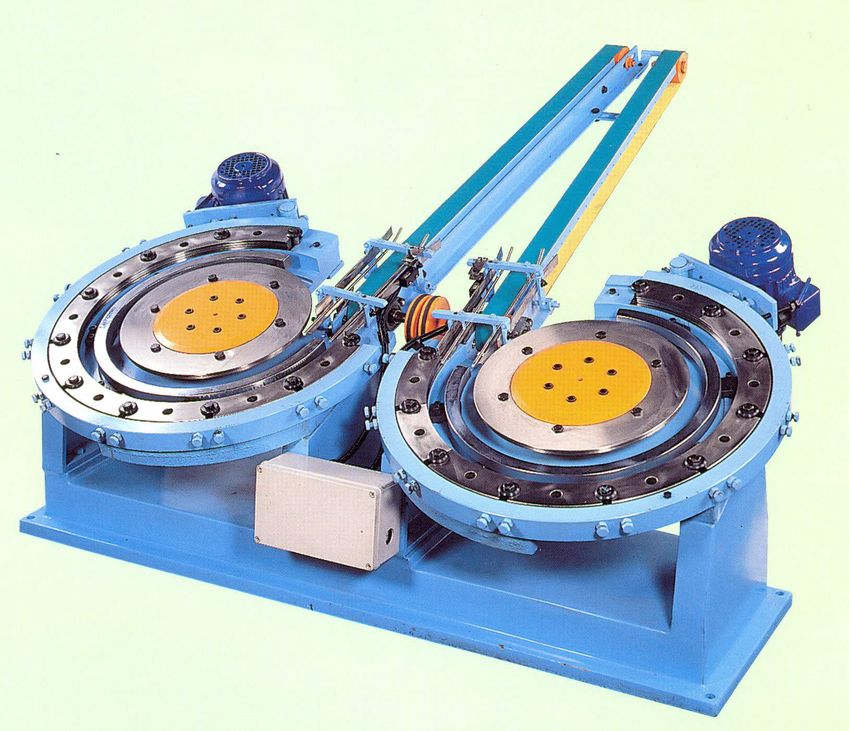

S-B18CL(LL) Automatic Double Curling Machine with double curling wheel is designed to inward curl the end fringe on round end. Ends punched by a press are delivered by chutes or conveyors into the curling machine. Two turning curling wheels and two set of fixed curling segment curl the end fringe gradually. Two central support rings are to support the ends while they are being curled so as to avoid deformation. Simple structure, easy for operation and maintenance.

Specifications

Machine Type	S-B18CL	S-B18CLL
Range of Can Dia.	200-603D	200-80D
Capacity Per Min.	Up to 600 pcs/min.	Up to 600 pcs/min.
Curling Wheel	Double	Double
Floor Space Overall Height	1830L x 1630W x 800H (mm)	2030L x 2080W x 910H (mm)
Net Weight	400 kgs	500 kgs

Features

Tooling is made from special alloy steel and harden treatment.
End guide with stainless steel or polish treatment.
Easy adjustment and quickly for changeover.
Can connect with conveyor to linning and drying M/C to reduce labor cost.
Perfect products and bulit for long life satisfy the requirement of can making.
Nine piece outer segments is equipped for each wheel.

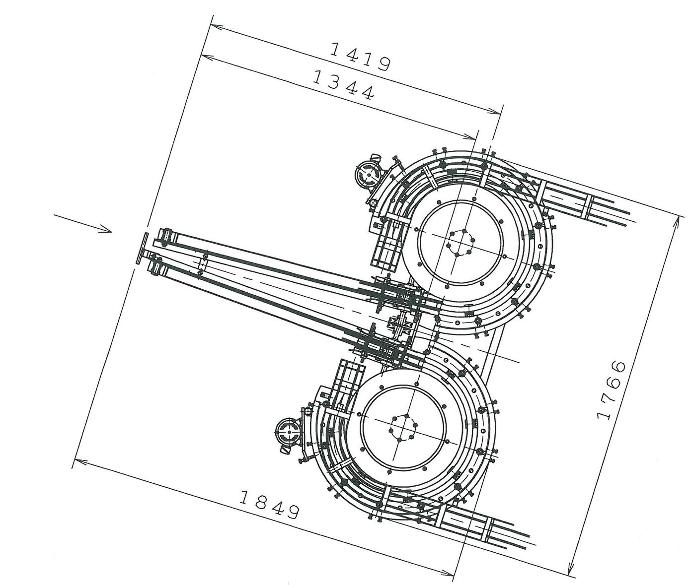

Layout Dimension

Applications

Whether you're a novice or looking to increase production capacity, whether you need to produce food cans or other packaging containers, our professional technical team will collaborate with you to tailor solutions to meet your can production needs.
