Automatic Vertical Flanging Machine

S-B32V

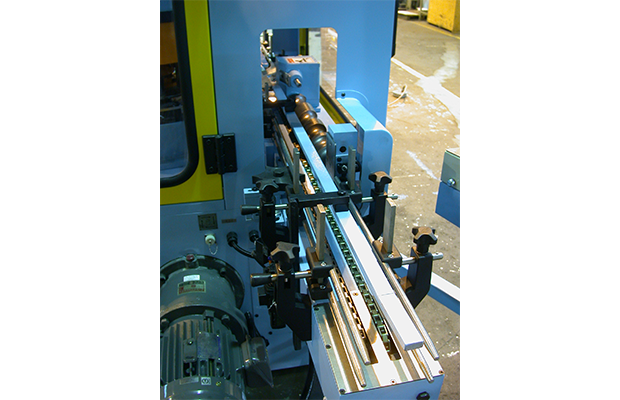

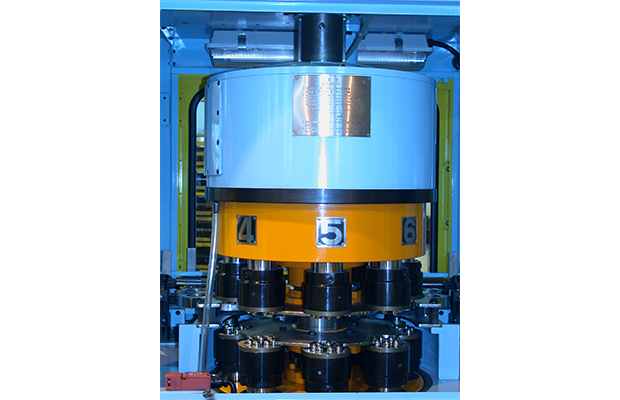

S-B32V Automatic Vertical Flanging Machine with vertical design is easily linked and work together with automatic double seamer. Can cylinder is carried by a timing screw and a turret to let swing flanging die (or spin flanging die) form flange. Then, flanged can body is carried out by a turret. Swing flanging works by two symmetric swing discs to squeeze can fringe while spin flanging works by several turning rollers to squeeze can fringe. With recycleable centralized lubricating system and multiple safety devices, easy for maintenance and can size changeover.

Specifications

Machine Type	S-B32V
Range of Can Dia.	202 - 401D
Range of Can Height	70 - 210 mmH
Capacity Per Min.	Up to 800 Cans
Horse Power Required	3HP
Floor Space Overall Height	2577L x 1190W x 1950H mm
Net Weight	2500 -3000 kgs

Features

Vertical design easy to connect with auto double seamer.
Recycleable center control lubricating system.
Use human-machine interface (touchable monitor) control system and inverter for setup and variable speed control.
Can guide and Turrets with hard chromium plating or Nylon material.
Full Automatic Control system for canmaking line requirement.
Multi-safety design for machine and personnel safety.
Flanging tooling can be swing type or spin type.

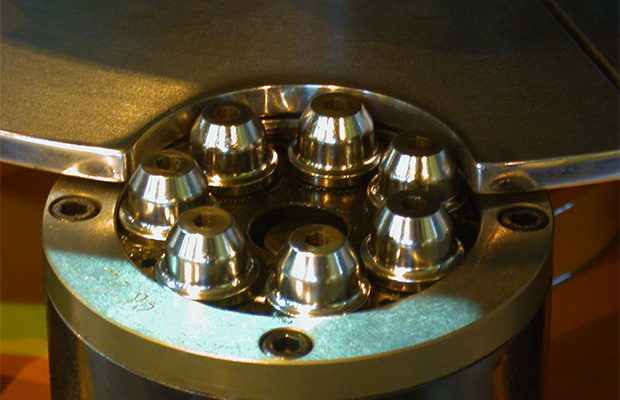

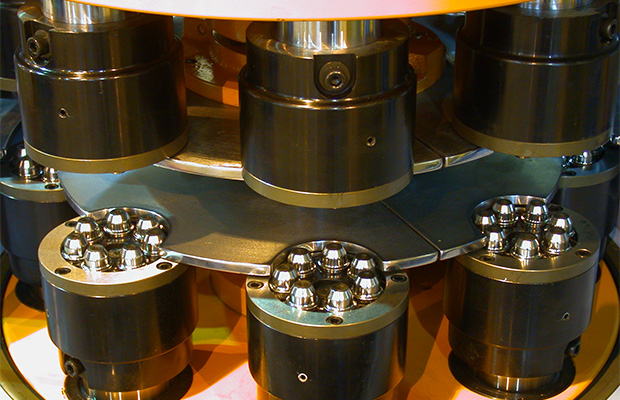

Swing flanging works by two symmetric swing discs while spin flanging works by several gear driven rollers.
Flanging system can be spin or swing type.

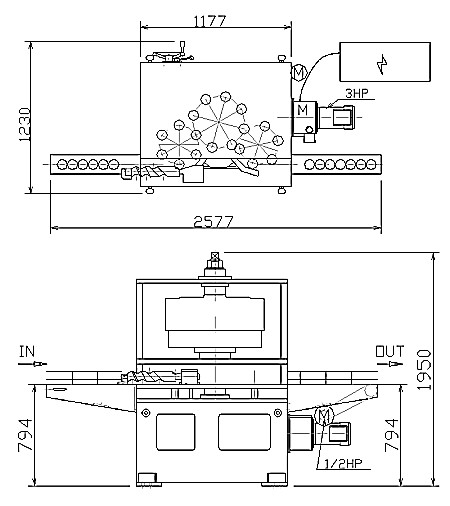

Layout Dimension

VIDEO

Applications

Whether you're a novice or looking to increase production capacity, whether you need to produce food cans or other packaging containers, our professional technical team will collaborate with you to tailor solutions to meet your can production needs.
