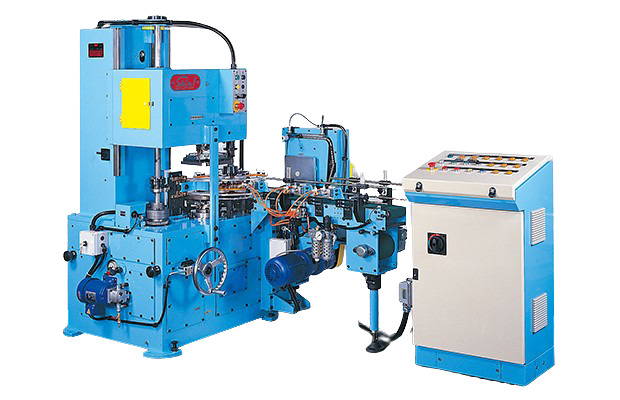

Automatic Vertical Square Can Flanger Machine

S-B42V
https://www.shinican.com/web/image/product.template/73/image_1920?unique=aeb30ee

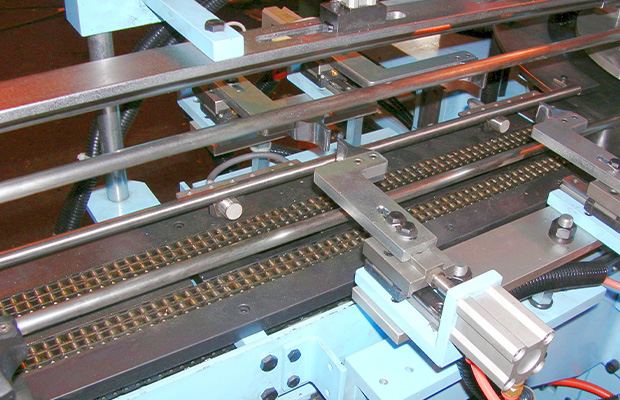

S-B42V Automatic Vertical Square Can Flanger with vertical design. Expanded can is carried into an index turret by a chain pusher. Can is flanged by a pair of squeeze flanging die.Flanged can is carried out by the index turret and is pushed away by a lever. Equipped with inverter for variable speed control. With recycleable centralized lubricating system and multiple safety devices, easy for maintenance and can size changeover.

    This combination does not exist.

    SpecificationsFeaturesLayout DimensionVIDEO

    Specifications

    Machine Type
    		 S-B42V
    Range of Can Dia.
    		50 x 95 - 180 x 180 mmH
    Range of Can Diagonal
    		60 - 400 mmH
    Capacity Per Min.
    		UP TO 60 Can
    Horse Power Required
    		2HP
    Floor Space Overall Height
    		2750L x 1600W x 1800H mm
    Net Weight
    		1800 kgs

    Features

    • Sturdy structure, suitable for various square/rectangular can flanging.
    • Vertical design, easy to link and work with an auto seamer.
    • Tooling is made of special alloy steel and be heat treated.
    • Can guide and turret are hard chromium plated to avoid scratch.
    • Can height adjustment through a motor, convenient and quick.
    • Multi-safety design for machine and personnel safety.

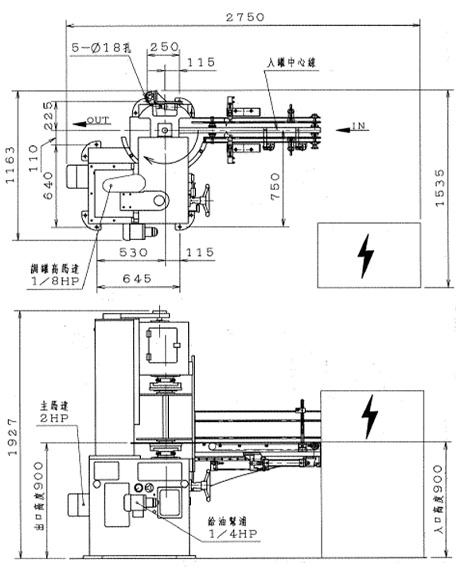

    Layout Dimension


    VIDEO





    Applications

    Whether you're a novice or looking to increase production capacity, whether you need to produce food cans or other packaging containers, our professional technical team will collaborate with you to tailor solutions to meet your can production needs.

    Food

    Learn More

    Others

    Learn More
