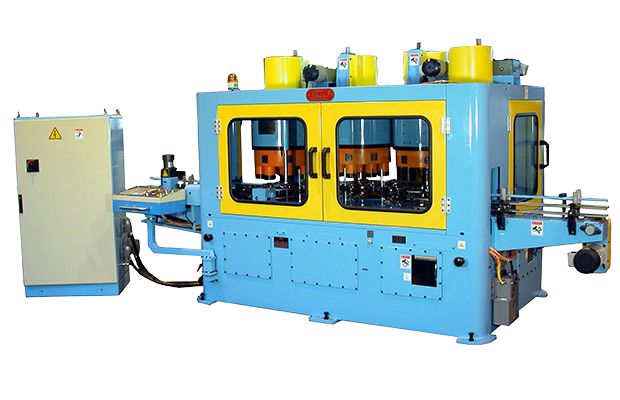

Automatic Vertical Triple Necker With Flanger Machine

Automatic Vertical Triple Necker With Flanger Machine

S-B47A

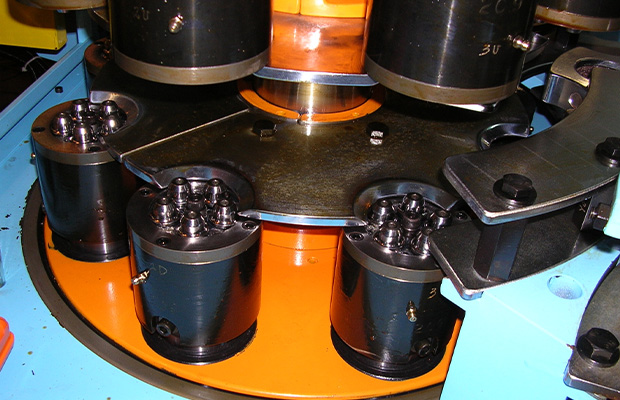

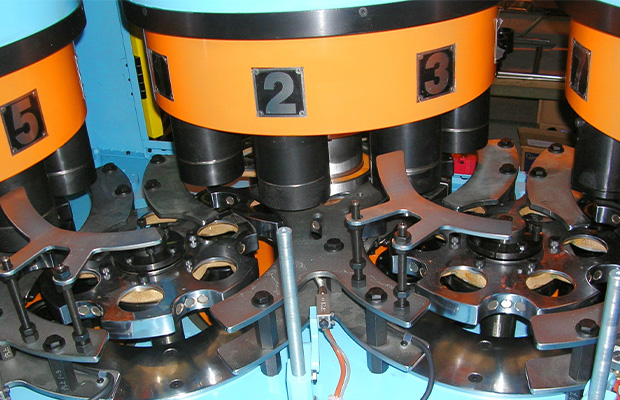

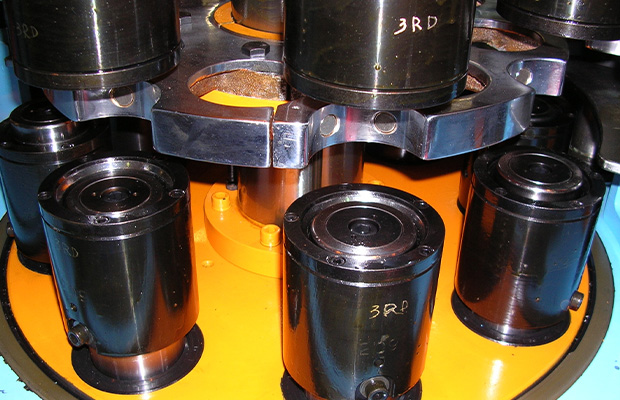

S-B47A Automatic Vertical Triple Necker with Flanger with vertical design is easily linked and work together with automatic double seamer. Can cylinder is carried by a timing screw and a turret. Triple neck is formed due to guidance from three shaped outer necking die made of tungsten carbide. Proper inner die is to prevent wrinkle. Then, necked can is flanged by swing flanging die (or spin flanging die). Swing flanging works by two symmetric swing discs to squeeze can fringe while spin flanging works by several turning rollers to squeeze can fringe. With recycleable centralized lubricating system and multiple safety devices, easy for maintenance and can size changeover.

Specifications

Machine Type	S-B47A
Model Type	8H	12H
Range of Can Dia.	202 - 401D	202 - 301D
Range of Can Height	70 - 180 mmH	70 - 180 mmH
Capacity Per Min.	UP TO 800 Can	UP TO 1200 Can
Horse Power Required	10HP	15HP
Floor Space Overall Height	3700 x 1600 x 1760 mm	3700 x 1600 x 1760 mm
Net Weight	8500 kgs	9000 kgs

Features

Vertical design, easy to connect with auto double seamer.
Recycleable central control lubricating system.
Use human-machine interface (touchable monitor) control system and inverter for setup and variable speed control.
Can guide and Turrent with chromium plating or Nylon material.
Full automatic control system for canmaking line requirement.
Multi-safety design for machine and personal safety.
Material for necking inner core is high speed steel, Carbide material is available on request.
Material for necking outer guide die is tungsten carbide.
Flanging tooling can be swing type or spin type.
Swing flanging works by two symmetric swing discs while spin flanging works by several gear driven rollers.
Flanging system can be spin or swing type.

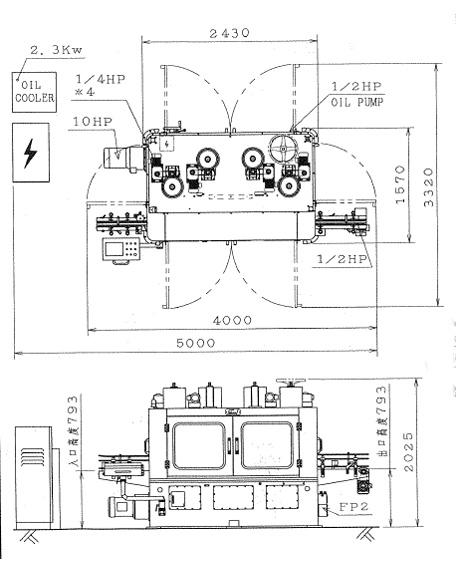

Layout Dimension

VIDEO

Applications

Whether you're a novice or looking to increase production capacity, whether you need to produce food cans or other packaging containers, our professional technical team will collaborate with you to tailor solutions to meet your can production needs.
