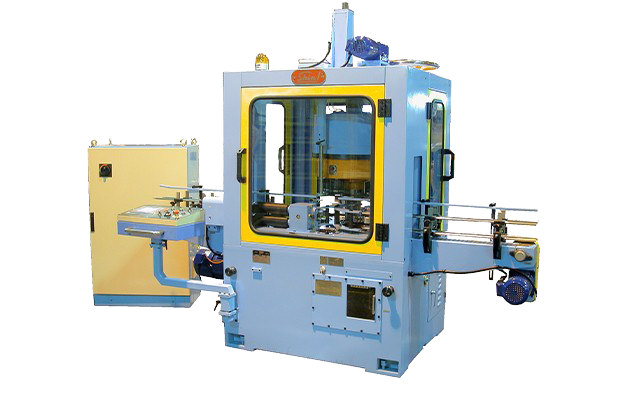

Automatic Vertical Flanging Machine

S-B74

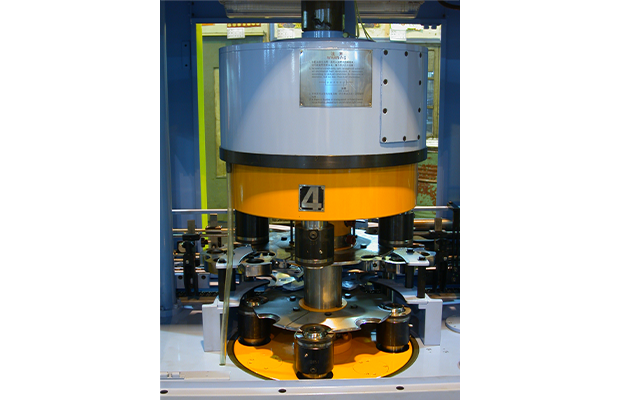

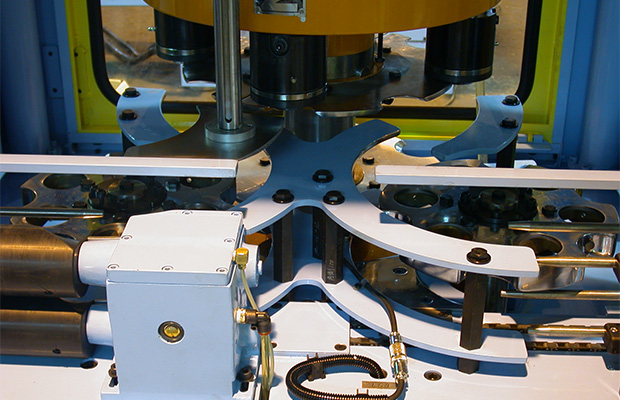

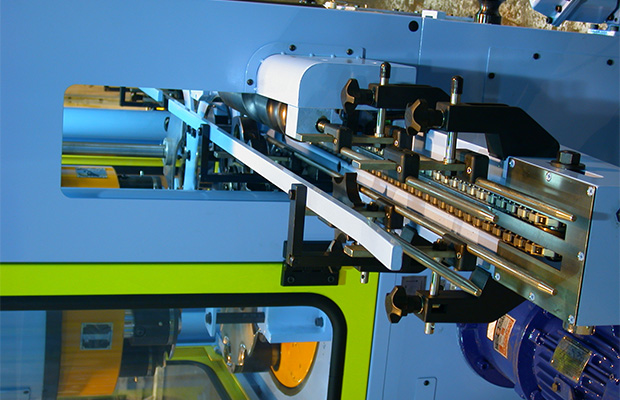

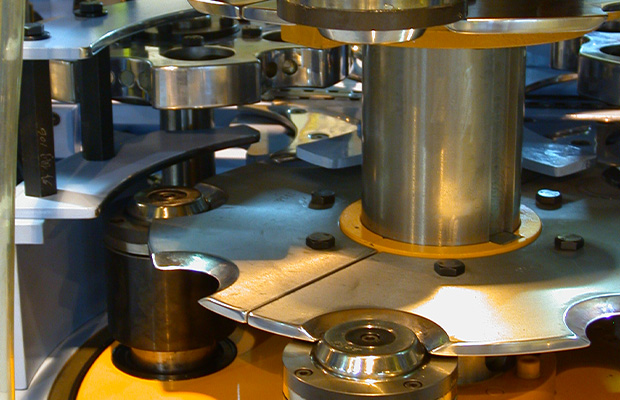

S-B74 Automatic Vertical Flanging Machine with vertical design is easily linked and work together with automatic double seamer. Can cylinder is carried by a timing screw and a turret to let swing flanging die to form flange. Then, flanged can body is carried out by a turret. Swing flanging works by two symmetric swing discs to slightly and evenly squeeze can fringe. With recycleable centralized lubricating system and multiple safety devices, easy for maintenance and can size changeover.

Specifications

Machine Type	S-B74
Model Type	4H	8H	12H
Range of Can Dia.	200 - 401D	200 - 401D	200 - 301D
Range of Can Height	70 - 210 mmH	80 - 200 mmH	90 - 200 mmH
Capacity Per Min.	Up to 400 Cans	Up to 800 Cans	Up to 1200 Cans
Horse Power Required	3HP	3HP	5HP
Floor Space Overall Height	2577L x 1190H x 1950W mm	2577L x 1190H x 1950W mm	2577L x 1190H x 1950W mm
Net Weight	2500 kgs	3000 kgs	3500 kgs

Features

Vertical design easy to connect with auto double seamer.
Recycleable center control lubricating system.
Use human-machine interface (touchable monitor) control system and inverter for setup and variable speed control.
Can guide and Turrets with hard chromium plating or Nylon material.
Full Automatic Control system for canmaking line requirement.
Multi-safety design for machine and personnel safety.

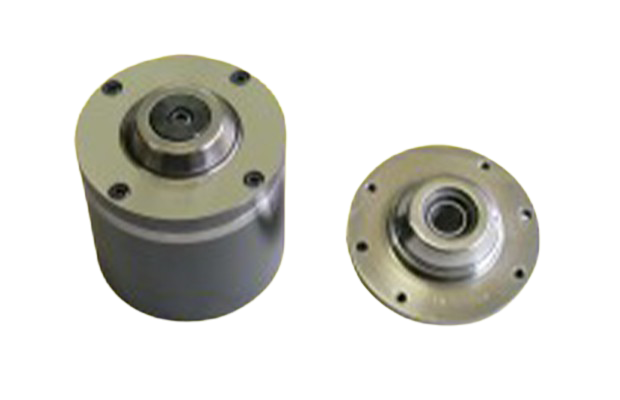

Swing flanging works by two symmetric swing discs while spin flanging works by several gear driven rollers.

Layout Dimension

VIDEO

Applications

Whether you're a novice or looking to increase production capacity, whether you need to produce food cans or other packaging containers, our professional technical team will collaborate with you to tailor solutions to meet your can production needs.
