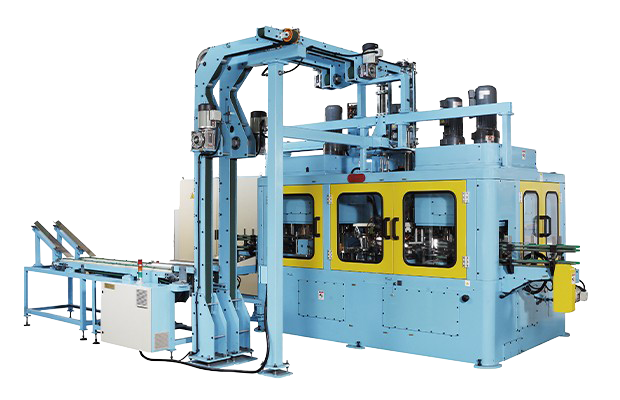

Automatic Vertical Spin Flow Necker, Flanger with Twin Seamers Machine(For Aerosol Can)

S-B93
https://www.shinican.com/web/image/product.template/74/image_1920?unique=c88e8bc

S-B93 Automatic Vertical Spin Flow Necker, Flanger with Twin Seamers is specially designed for aerosol can, vertical design is easily linked and worked together with other machines. On station 1 and 2, spin flow system is introduced to easily neck and flange can cylinders made of hard DR tinplate for free wrinkle. On station 3 and 4, bottom end and top end is to be closed by seaming rollers and chucks. Top end and bottom end are fed into seaming system from top through conveyors and two end magazines with two knives each set. Both side seamed can is carried away by a turret. With recycleable centralized lubricating system to lubricate top and bottom transmission system, easy for maintenance.

    This combination does not exist.

    SpecificationsFeaturesLayout DimensionVIDEO

    Specifications

    Machine Type
    		 S-B93
    Model Type
    		6H
    Range of Can Dia.
    		45 - 73 D
    Range of Can Diagonal
    		60 - 340 mmH
    Capacity Per Min.
    		UP TO 400 Can
    Horse Power Required
    		20HP x 1 , 5HP x 4 , 2HP x 1 , 1/2HP x 3
    Floor Space Overall Height
    		7410L x 4380W x 3040H mm
    Net Weight
    		13000 kgs

    Features

    • Spin flow system suitable for hard and thin tinplate.
    • Vertical four stations in one design easy to connect with other machines.
    • Recycleable central control lubricating system.
    • Use human-machine interface (touchable screen) control system and inverter for set up and variable speed control.
    • Can guide and Turrets with hard chromium plating or Nylon material.
    • Full Automatic Control system for Can making line requirement.
    • Can height adjustment driven by motors, a digital ruler is introduced, easy for changeover.
    • Can body turning speed is adjustable on each station to get excellent performance.
    • Each end magazine is equipped with twin spiral separating knives.
    • Ground level two lane end feeding system to save manpower.
    • Multi-safety design for machine and personnel safety.

    Layout Dimension


    VIDEO





    Applications

    Whether you're a novice or looking to increase production capacity, whether you need to produce food cans or other packaging containers, our professional technical team will collaborate with you to tailor solutions to meet your can production needs.
