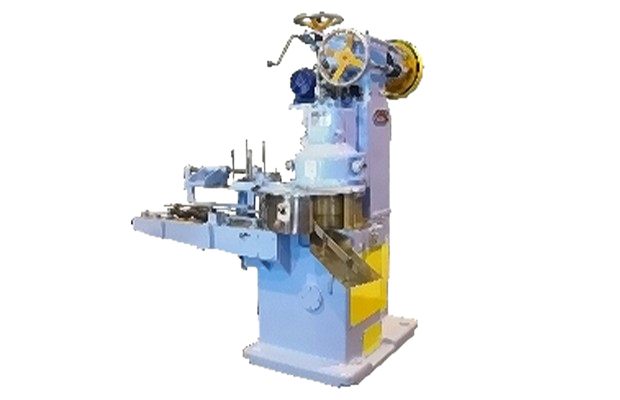

Automatic Vacuum Seamer

S-C18

S-C18 Automatic Vacuum Seamer is specially designed for big round can closing under vacuum . Filled can is fed forward through a timing screw and a chain to enter a a pocket of index vacuum turret, with six pockets, to meet with end in vacuum seaming station. Lifter plate lift can up in vacuum chamber. Four seaming rollers undertake seaming operation. Seam quality meet international standard. Simple structure and multiple safety devices, easy for operation and maintenance.

Specifications

Machine Type	S-C18
Range of Can Dia.	401 - 603 D
Range of Can Height	100 - 230 mm
Capacity Per Min.	Up to 30 cpm
Main Motor	2HP x 1
Vacuum Pump Required	5HP x 1
Floor Space Overall Height	1600L x 1500W x 2000H mm
Net Weight	1700 kgs

Features

With CANCO type eccentic pinion gear, easy for double seam adjustment.
2ND Operating roll with cushion spring also suitable for soldered can.
Infeed table with Timming sprial to simplize the drive machanism.
Mechanical type NC NC control device easy for adjusting and setting.
Easy adjusting and quick for can size chang over.
Can be connceted with clincher model S-C4L as customer request.
Equipped with one CANCO seaming heads.
With mechanical knock-out pad, driven by a cam.
All parts contact with can/lid are made of stainless steel or bronze.
