Specifications
| Machine Type |
S-C2 |
| Range of Can Dia. | 202 - 401 D |
| Range of Can Height | 50 - 125 mm |
| Capacity Per Min. | Up to 50 cpm |
| Horse Power Required | 2HP x 1 |
| Vacuum Pump Required | 5HP x 1 |
| Floor Space Overall Height | 1400L x 1405W x 1950H mm |
| Net Weight | 1600 kgs |
Features
- With CANCO type eccentic pinion gear, easy for double seam adjustment.
- 2ND Operating roll with cushion spring also suitable for soldered can.
- Infeed table with Timming sprial to simplize the drive machanism.
- Mechanical type NC NC control device easy for adjusting and setting.
- Easy adjusting and quick for can size chang over.
- Can be connceted with clincher model S-C4 as customer request.
- Equipped with one CANCO seaming heads.
- With mechanical knock-out pad, driven by a cam.
- All parts contact with can/lid are made of stainless steel or bronze.

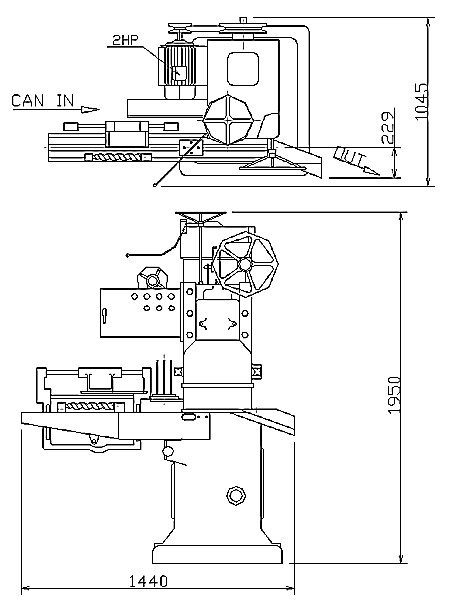

Layout Dimension
