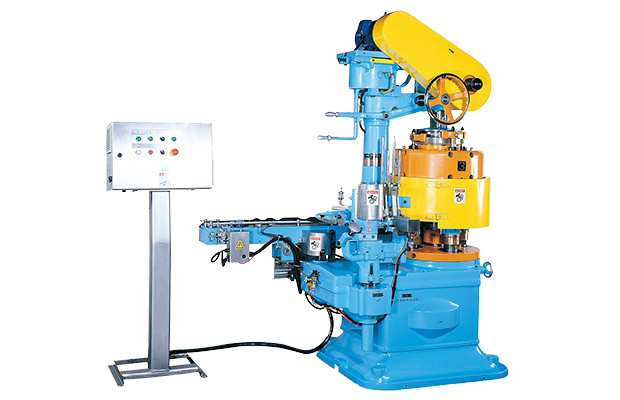

Automatic Sanitary Seamer

S-C33B
https://www.shinican.com/web/image/product.template/44/image_1920?unique=e2a6329

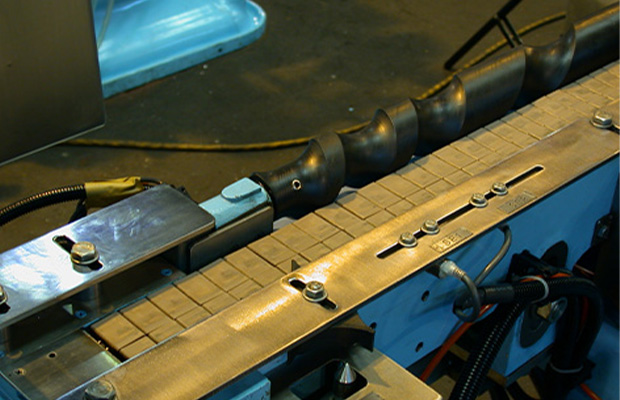

S-C33B(L) Automatic Sanitary Seamer is specially designed for round food can closing. Filled can is fed forward through a timing screw and a chain to enter seaming station. Lifter plate lift can up to meet with end . Can is static while seaming head, made of stainless steel, is turning. Four seaming rollers undertake seaming operation. Cam driven knock out pad release the seamed can from chuck and seamed can is carried out by a turret. Seam quality meet international standard. Simple structure and multiple safety devices, easy for operation and maintenance.

    This combination does not exist.

    Specifications

    Machine Type
    S-C33B
    S-C33BL
    Range of Can Dia.
    202 - 401D
    404 - 700D
    Range of Can Height
    75 - 160 mm(155 - 240 mm)
    75 - 185 mm(150 - 260 mm)
    Capacity Per Min.
    Up to 200 cpmUp to 120 cpm
    Horse Power Required
    5HP x 15HP x 1
    Floor Space Overall Height
    1670L x 1020W x 2230H mm
    2750L x 1860W x 2800H mm
    Net Weight
    2500 kgs
    3300 kgs

    Features

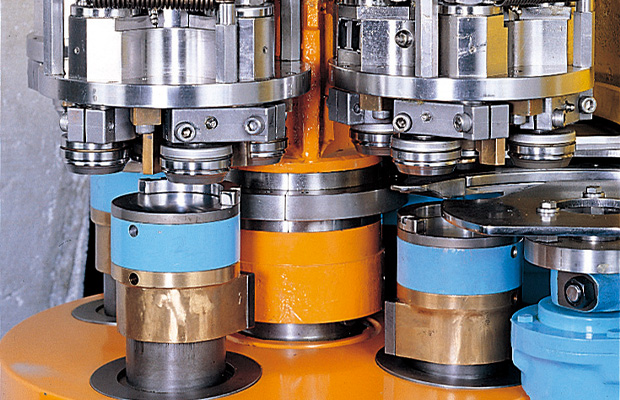

    • With four sets of concise stainless steel seaming heads, easy adjustment and maintenance.
    • Electric No Cover No Can system, accurate function.
    • Electric inverter is equipped for variable speed control.
    • All parts contact with can/lid are made of stainless steel or bronze.
    • Lid marker or under cover gassing system is available on request.
    • Simple structure, easy for can size changeover.

    Layout Dimension



    VIDEO





    Applications

    Whether you're a novice or looking to increase production capacity, whether you need to produce food cans or other packaging containers, our professional technical team will collaborate with you to tailor solutions to meet your can production needs.
