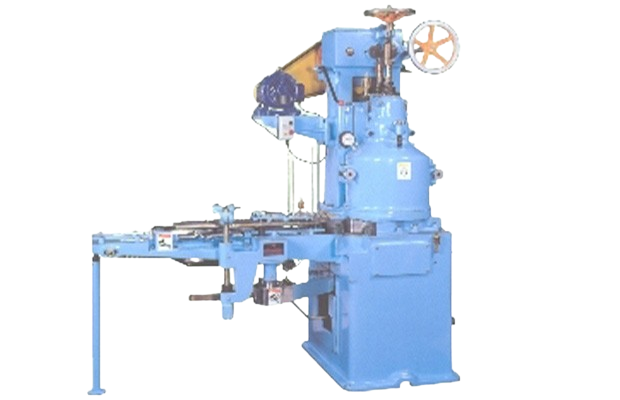

Automatic Irregular Can Vacuum Seamer

S-C34A
https://www.shinican.com/web/image/product.template/54/image_1920?unique=35bfec5

S-C34A Automatic Irregular Can Vacuum Seamer is specially designed for irregular can closing under vacuum . Filled can is fed forward through a timing screw and a chain to enter a pocket of vacuum turret, with six pockets, in vacuum seaming station then meet with end. Lifter plate lift can up into vacuum chamber. Four seaming rollers undertake seaming operation. A concise seaming head with adjustable chuck set, make seaming quality meet international standard. Each seaming arm is controlled by an individual seaming cam and a copy disc is to guide rollers turn accordingly. Simple structure and multiple safety devices, easy for operation and maintenance.

    This combination does not exist.

    SpecificationsFeaturesLayout Dimension

    Specifications

    Machine Type
    		 S-C34A
    Range of Can Dia.
    		45 - 100mm length, width
    Range of Can Height
    		18 - 100 mm
    Maximun can diagonal
    		Up to 172 mm
    No. of pocket on vacuum turret
    		6
    Capacity Per Min.
    		Up to 40 cpm, depending on can shape, size
    Main Motor
    		3HP x 1
    Floor Space Overall Height
    		5HP x 1
    Floor Space Overall Height
    		1976L x 1151W x 2170H mm
    Net Weight (approx)
    		1800 kgs

    Features

    • Seaming rolls movement is cam operated, hence makes seam seven perfect.
    • Easy accessibility for maintenance.
    • Simple mechanism and easy to operate.
    • Wild range for different can sizes shapes.
    • Machanical no can no cover device.
    • Marker is not available on this seamer. Individual marker model S-C5S is recommended.
    • Special for larger can ( comparing with S-C25A ).
    • With mechanical knock-out pad, driven by a cam.
    • Seaming chuck set is equipped with tiny twist adjustment device for better seam quality.
    • One of the four seaming can function as curling roller for uncurled or bad curled lid.
    • All parts contact with can/lid are made of stainless steel or bronze.

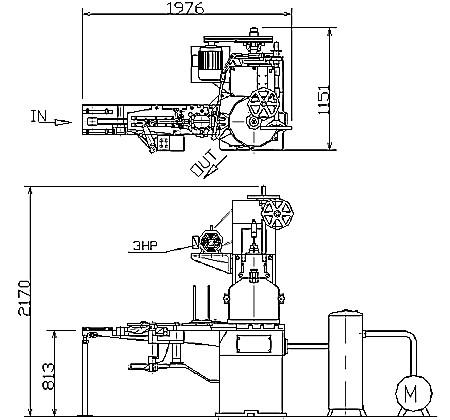

    Layout Dimension
