Specifications
| Machine Type |
S-C3A | S-C3AL |
| Range of Can Dia. | 202 - 401 D | 404 - 603 D |
| Range of Can Height | 43 - 160 mm | 110 - 230 mm |
| Capacity Per Min. | Up to 65 cpm | Up to 40 cpm |
| Main Motor | 2HP x 1 | 2HP x 1 |
| Floor Space Overall Height | 1900L x 1180W x 2000H mm | 2100L x 1300W x 2100H mm |
| Net Weight | 1060 kgs | 1260 kgs |
Features
- Very sturdy structure of machine, suitable for all round cans closing operation.
- Straight can feed path prevent liquid from splash, easy connecting with Liquid Filler.
- Easy for can size changover and adjustment.
- Simple dseign, easy for maintenance and can sizes change over.
- Use Sensor for NC NC control.

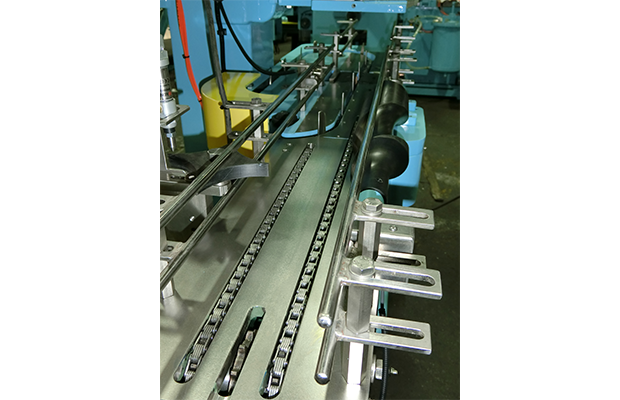

- Straight can feed path (with timing spiral).

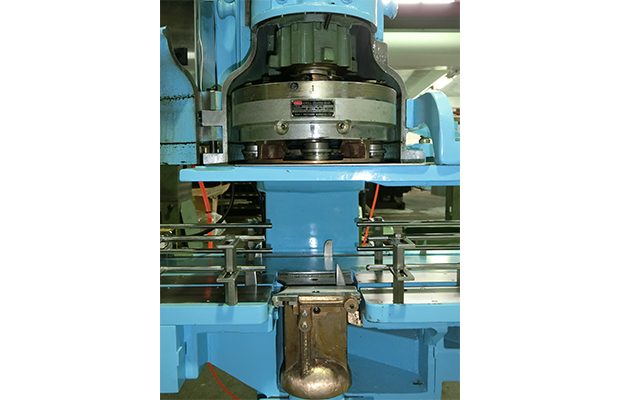

- Equipped with one CANCO seaming heads.
- Under cover gasing system is available on request for canning.
- With mechanical knock-out pad, driven by a cam.
- All parts contact with can/lid are made of stainless steel or bronze.
Layout Dimension
