Specifications
| Machine Type |
S-C90 |
| Range of Can Diameter | L:45～100mm；W:45～100mm |
| Range of Can Height | 18-120mmH |
| Diagonal | Under 130mm (Dingley 3B/Club5A/Oval Can) |
| Capacity per Min. | UP TO 50-100CPM |
| Main Motor | 5 HP |
| Vacuum pump | 7.5HP |
| Floor Space Overall Height | 2920L × 1610W × 2390H mm |
| Net Weight (approx) | 4600 kgs |
Features
- Rigid machine structure, suitable for various irregular can seaming operations.
- After the can body and lid are aligned at the inlet, they pass through a clinching plate to ensure they are securely joined.

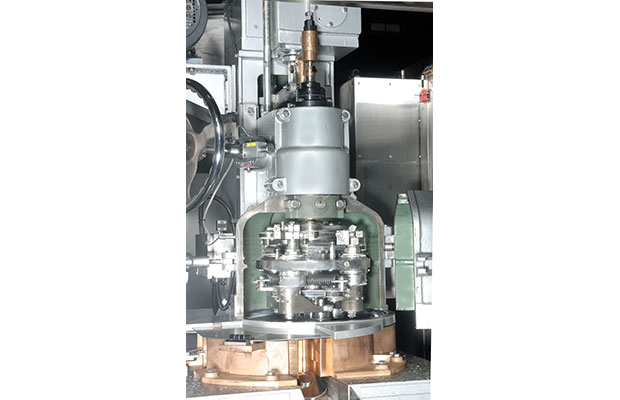

- The advancement and retraction of the seaming rollers are fully controlled by a seaming cam, ensuring precise movement and easy adjustment.
- The seaming head structure is compact and sturdy, making it easy to operate and maintain.
- Equipped with an electronic sensor for the "no can - no lid" mechanism, which is precise and effective. If lid-feeding abnormalities occur, the machine will automatically stop and trigger a warning light.
- Uses a frequency inverter for speed regulation. The start, stop, acceleration, and deceleration controls are extremely smooth, effectively reducing inertial impact and extending the machine's lifespan.
- Features multiple safety controls, such as main clutch disengagement, "no lid" detection, motor overload, and emergency stop for can jams.
- The lid-feeding system can be integrated with the customer's automatic delivery system, and optional lid-clamping devices can be added.
