S-D32 Automatic Irregular End Curling Machine
S-D32 Automatic Irregular End Curling Machine
- Product Info
- Product Sample
- Machine Video
- Machine Animation
- Close View / Tooling
- Specification / Features

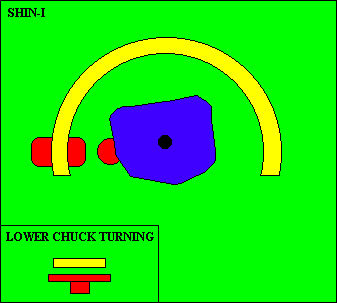

S-D32 Automatic Irregular End Curling Machine with vertical design is easily linked and work together with automatic lining machine. Uncurled end (tin or aluminium end) is carried by a timing screw and a turret. Curl is formed by a chuck and a curling roller. Equipped with four chucks and four curling rollers. End turn and is supported by a chuck and a curved pressing guide. Curling roller is guided by a cam to approach the end fringe. Curled end is sucked away by a suction pad and released on a discharge belt. With recycleable centralized lubricating system and multiple safety devices, easy for maintenance and can size changeover.
coming soon
Specifications
Machine Type | S-D32 |
---|---|
Range of Can Dia. | 59 x 70 - 110 x 165 mm |
Capacity Per Min. | Up to 250 Ends |
Horse Power Required | 3 HP |
Floor Space Overall Height | 3350L x 1550W x 1700H mm |
Net Weight (approx.) | 2750 kgs |
Features
- Tooling is made of special alloy steel and be heat treated.
- Suitable for tin or aluminium end curling.
- End fringe is all-round curled , good for seaming.
- End curl is formed by a curling roller, easy to adjust curl dimension.
- Use human-machine interface (touchable screen) control system and inverter for set up and variable speed control.
- End guide and transfer screws are hard chromium plated.
- Multi-safety design for machine and personnel safety.
- Curl dimension can be changed by adjusting curling roller.
Layout Dimension
